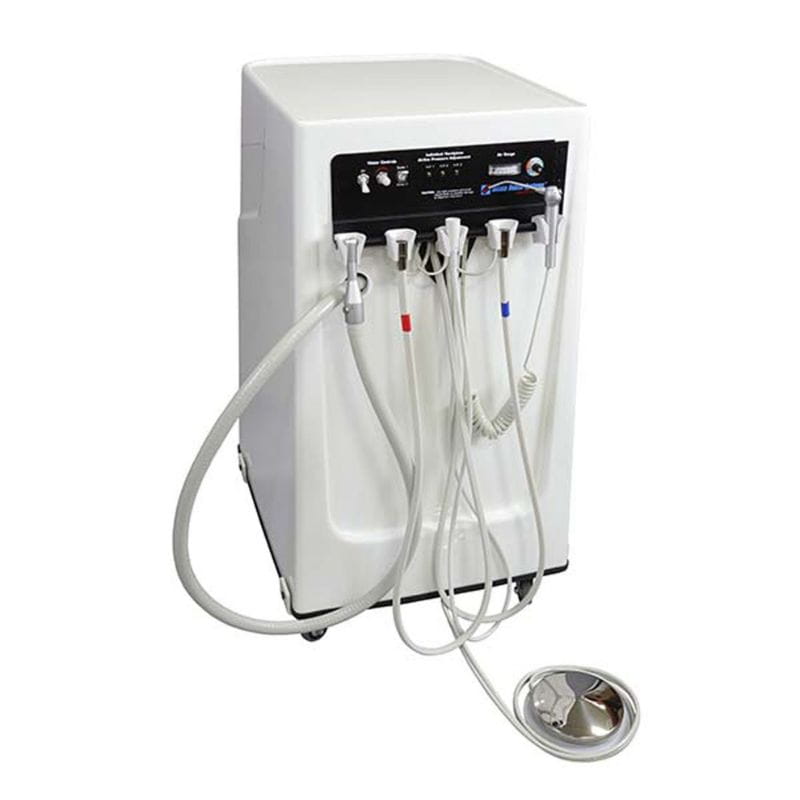

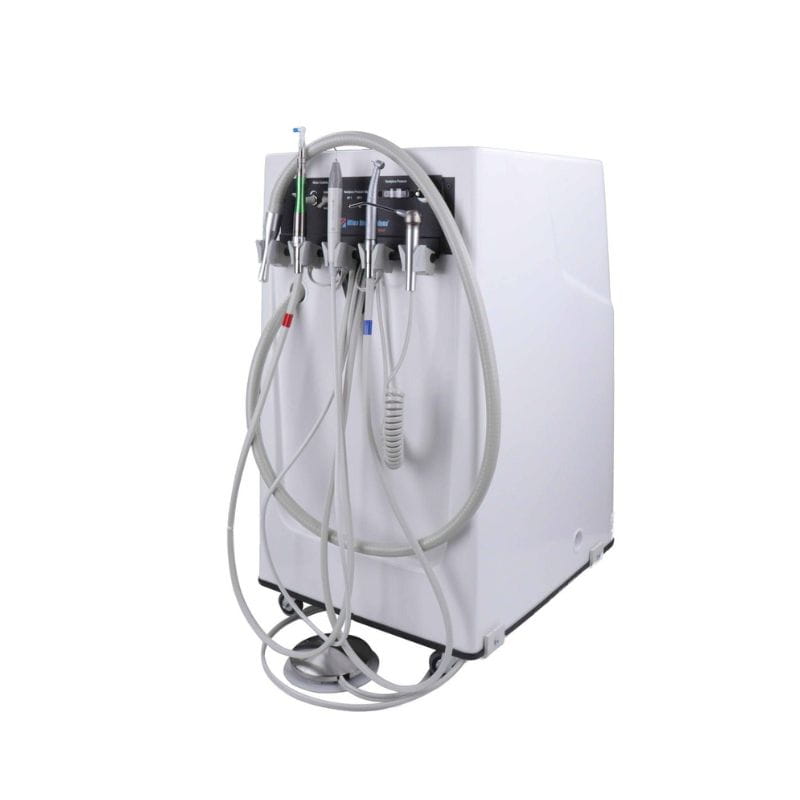

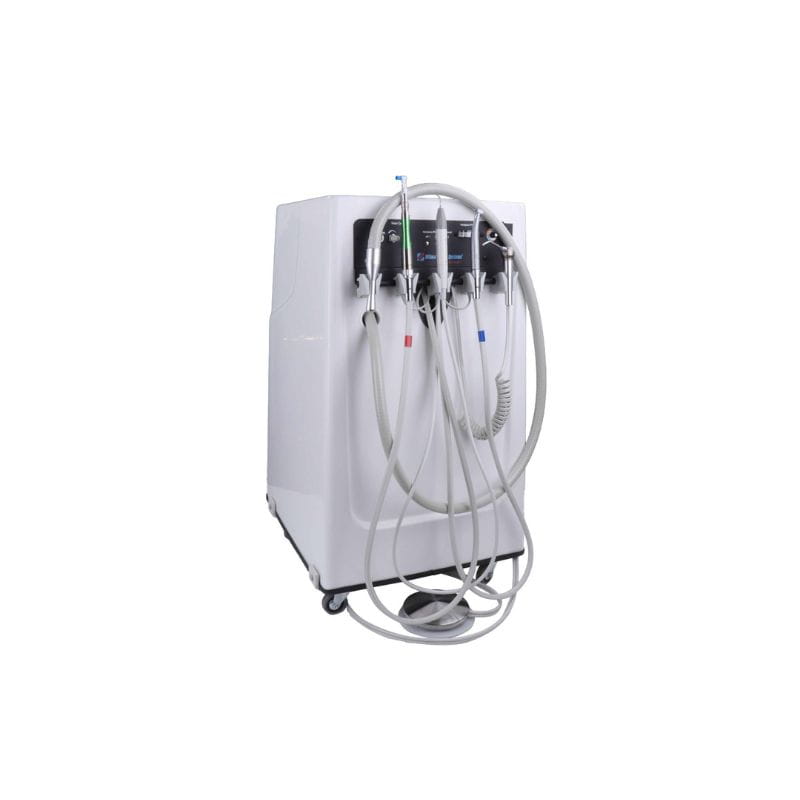

Ultima 500 Veterinary Dental Unit
The Ultima 500 Series is the original dental unit designed specifically for veterinarians. This system is housed by a custom shell that is durable, easy to maintain and clean. The unit is mobile and fits under most standard countertops for easy storage after use.
Features:
- Enclosed housing design with antibacterial material on shell
- Flat top that can be used as additional working counter space for surgical instruments, tools, etc. (top edges are raised to keep round instruments from rolling off)
- Advanced E-Type low speed with 4:1 reduction nose cone for polishing (optional 1:1 blue nose cone available for exotics and rabbit dentistry)
- Satelec® Piezoelectric Scaler Handpiece offers greater versatility from general cleanings to advanced dentistry (available with or without LED)
- High Speed Handpiece (not available for Base Model)
- Automatic handpiece selection
- Auxiliary water port for an additional Piezoelectric Scaler
- Water coolant On/Off switch
- Water adjustable flow control valve
- Adjustable, easy to access handpiece pressure adjustments
- Aseptic tubing for ease of cleaning
- Power strip for extra equipment
- Silent surge oil compressor for proven longevity
- 3 year warranty on dental unit, 1 year warranty on handpieces, 6 month warranty on turbines
Technical Specifications:
- Tank size: 4 gallons
- Sound pressure level: 40 decibels
- Weight: 120 lbs
- Dimensions: 33" H x 18" W x 21" D
COMPRESSOR OPTIONS:
- Ultima 500 I: Powered by a single head 1/2 horsepower compressor.
- Ultima 500 II: Powered by a double head 1 horsepower compressor. Includes heavy duty venturi suction system.
All compressors include an auto vent feature for the air holding tank to vent into a collection bottle every 30 minutes to extend the life of the compressor by preventing the holding tank from rusting and rupturing, as compared to standard dental units which must be vented manually.
ULTIMA 500 MODELS:
Base model includes:
- 3-Way Air / Water Syringe
- Ultima Compressor
- Heavy duty venturi suction system (Ultima 500 II models only)
- Ultima Starter Pack
No Lights model includes:
- 3-Way Air / Water Syringe
- Low Speed Polisher Handpiece
- Ultima Standard Push Button Handpiece
- Built-in Satelec® Standard Scaler Handpiece with 3 tips:
- No. 1 Universal Satelec® Tip for supragingival scaling
- No. 2 Heavy Calculus Satelec® Tip
- 10P Perio Satelec® Tip for shallow pockets
- Ultima Compressor
- Heavy duty venturi suction system (Ultima 500 II models only)
- Ultima Starter Pack
Complete model includes:
- 3-Way Air / Water Syringe
- Low Speed Polisher Handpiece
- Versa LED High Speed Handpiece with swivel* for greater visibility
- Built-in Satelec® LED Scaler Handpiece with 3 tips:
- No. 1 Universal Satelec® Tip for supragingival scaling
- No. 2 Heavy Calculus Satelec® Tip
- 10P Perio Satelec® Tip for shallow pockets
- Ultima Compressor
- Heavy duty venturi suction system (Ultima 500 II models only)
- Ultima Starter Pack
Ultima Starter Pack includes:
- (10) Disposable Oscillating Prophy Angles
- (10) Prophy Paste Cups
- (1) Ultra Scale™ Solution Bottle
- (1) Bio Lube® Lubricant Pen
- (1) Bio Lube® Cleaner Can
- (1) Aspirator Tip (Ultima 500 II models only)
- (1) Magnetic Bur Block & Cover (
- 10) Burs (5 of each):
- Tapered Fissure #701L, FG, 19 mm - Carbide
- Round Tip #2, FG, 19 mm - Carbide
This unit is designed for small animals:
- Dogs & Cats:
- For tiny to small dogs (2 to 25 lbs):
- Require narrow scaling tips like the one included 10P perio tip
- For medium to Goliat size dogs (25-100+ lbs):
- Require broader scaler tips like the No.2 Heavy Calculus Tip
- For tiny to small dogs (2 to 25 lbs):
- Rabbits, Rodents, Pocket Pets.
- Same requirements than animals from 2 to 25 lbs.
