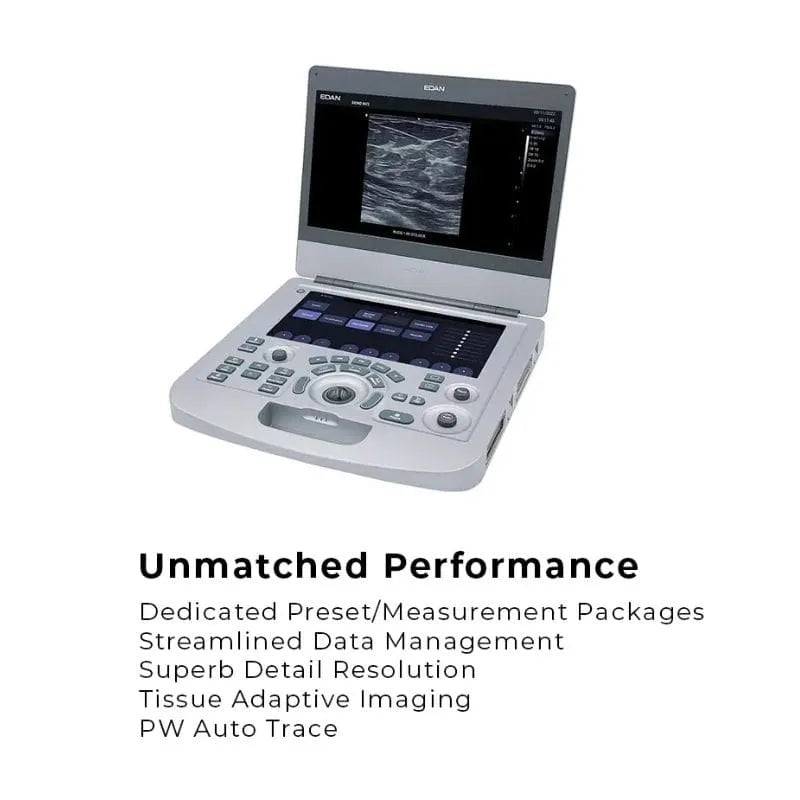

Edan Acclarix AX3 Veterinary Portable Ultrasound Machine
The remarkable Acclarix AX2/AX3 series Veterinary Compact Ultrasound System delivers a powerhouse combination of features to meet the demands of point-of-care and general imaging applications. This series has been designed from the ground up with a relentless focus on delivering unexpected levels of innovation and performance at an equally surprising price point. One active transducer port design enables switching transducer seamlessly at a fingertip Dual batteries extend the imaging scanning. Extremely light body embodied with brand new EIS operating system empowers smooth system operation and fast system response.
Advanced Technique & Features
- TAI Tissue Adaptive Imaging
- eSRI Adaptive Speckle Reduction Imaging
- Frequency Compounding Imaging
- Adaptive Spatial Compounding Imaging
- Harmonic Imaging
- B mode Auto Optimization
- Digital Multi-Beam forming
- Trapezoid Imaging

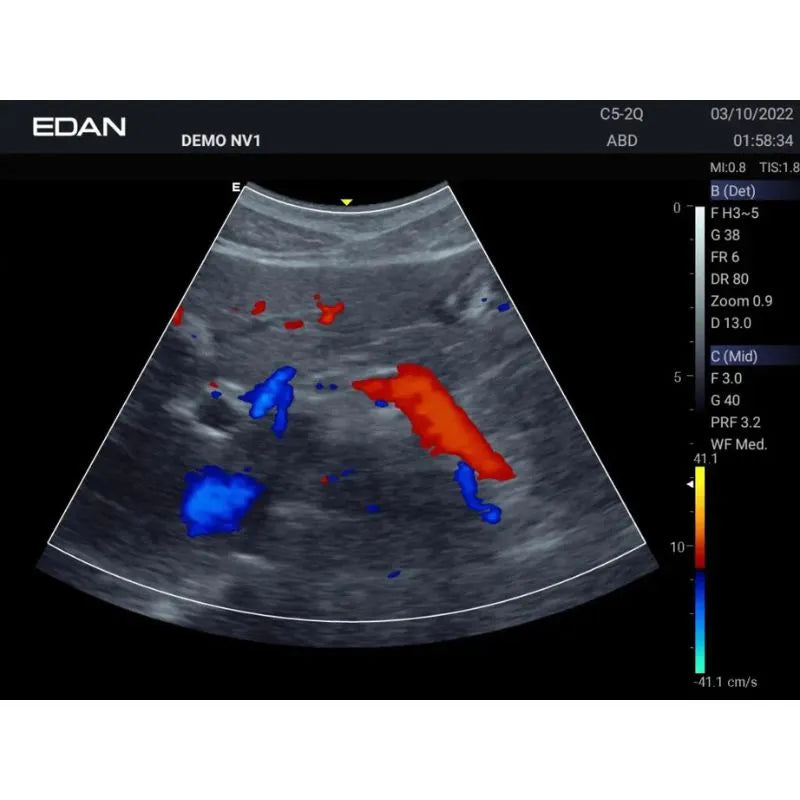

- Adaptive Doppler imaging
- Spectrum Enhancement
- B Steer
- Digital Zoom
- Auto Doppler trace
- 1 and 2 Transducer Port Options
Transducer Options

The need-to-know
System Architecture
- Physical Channels: 64
- Beam Forming: Quad beam
- Processor: ARM
- Memory: 2 GB
- Hard Drive: 120G SSD
- Operating System: Android
- System Boot-up: About 30s
- Boot-up from sleep: 5s
- Shutdown: 3s
Dimensions & Weight
- Dimension: 375 mm×380 mm×58 mm
- Net Weight (No Battery): 4.2kg (1 transducer port)
- Net Weight (1 battery): 4.65 kg (1 transducer port)
Monitor Specs
- 15.6’’ high resolution LCD monitor
- Resolution: 1920 x 1080
- Image Size: 1040 780
- Open angle: 0° – 180°
- Magnetic latch closure
- Built-in stereo speaker
- Brightness and Contrast adjustable

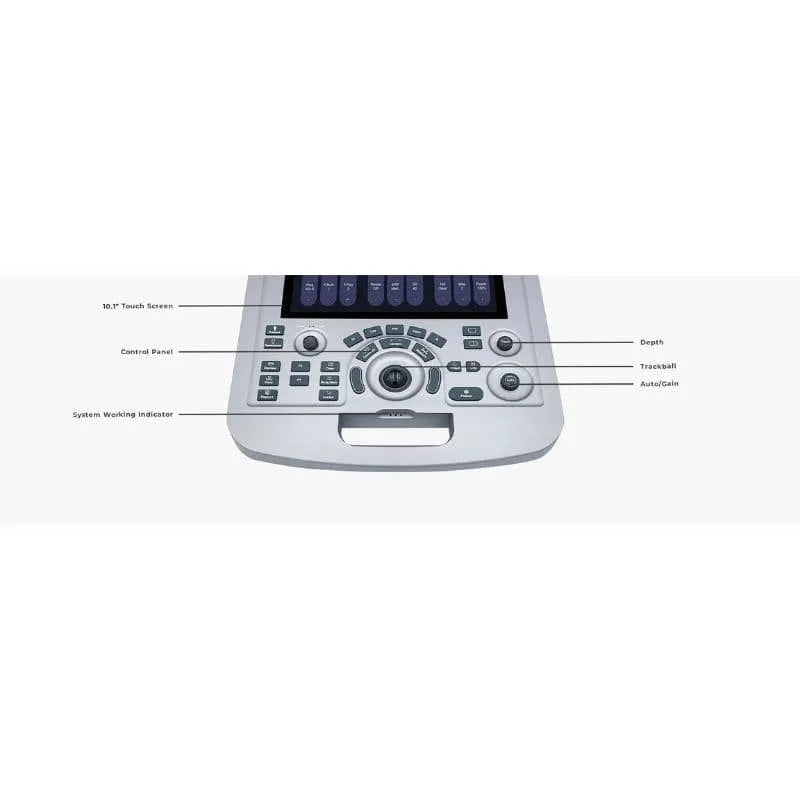

Control Panel Touch Screen
- 10.1” Touch screen
- Gesture-control
- Virtual TGC sliders
- Support QWERTY keyboard for text input
- Brightness adjustable
Control Panel Keyboard
- Interactive back-lighting
- Hard Keys provides tactile feedback
- User-defined keys
Transducer Port
- One active transducer port
- Single transducer port configurable
Battery
- Rechargeable
- Max. two batteries configurable
- 5000mAh capacity for each battery
- Removable
- Approximately 1 hour of typical ultrasoundexam use for one fully charged battery.
- Approximately 2 hours of typical ultrasoundexam use for two fully charged batteries.
- Standby time: > 4 hours (two batteries)
- One battery fully charged in about 2.5 hours
- Two batteries fully charged in about 5 hours
- Battery indicator on the console near the handle
- Battery level icon displayed on the main screen

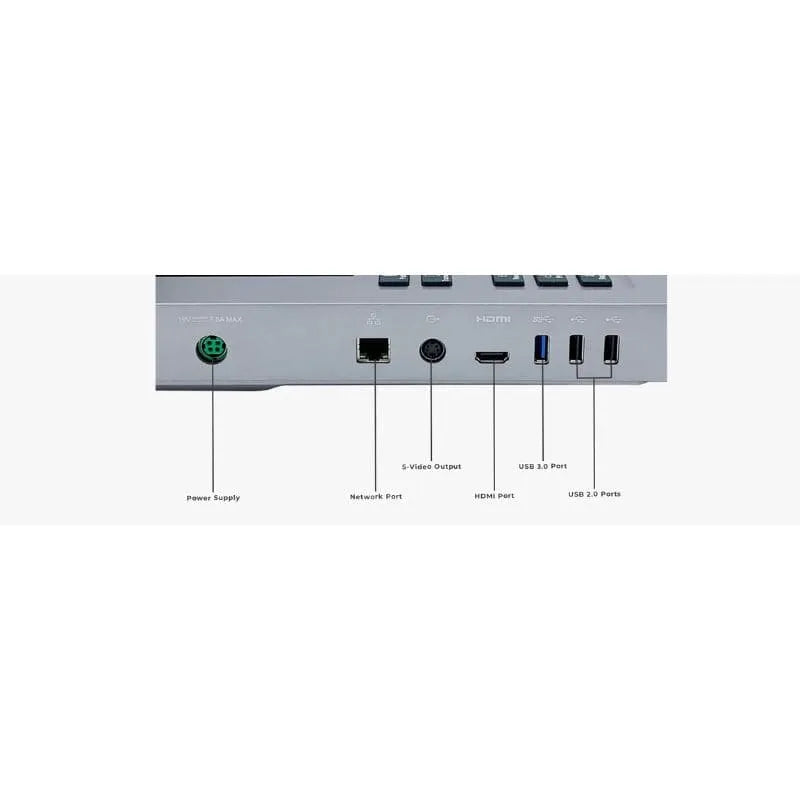

I/O Ports
- S-Video
- USB 3.0
- HDMI
- Ethernet
AC Power Requirements
- Voltage: 100-240 V~
- Frequency: 50Hz/60 Hz
